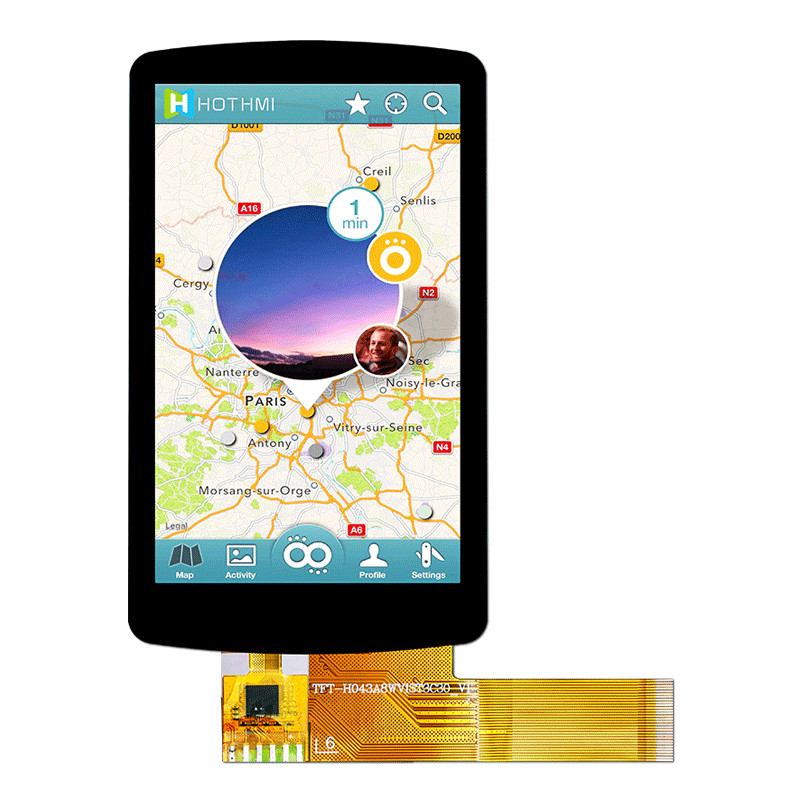

4.3 Inch IPS TFT Capacitive Screen , 480x800 TFT Color Display

Name: 43 Inch IPS TFT Capacitive Screen 480x800 TFT Color Display
Brand: HOTHMI
Price: 1 USD

Buy cheap 4.3 Inch IPS TFT Capacitive Screen , 480x800 TFT Color Display product

Brand Name : HOTHMI

Model Number : TFT-H043A8WVIST3C30

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : TFT Module

Driver chip model : ST7701S,GT911

Dimensions (mm) : 67.00x116.24x3.85

Effective Size (mm) : 56.16x93.60

Product Application : Instrumentation, MIPI Display

Connection method PIN number : FPC-30PIN

Contact Now

4.3 inch IPS Capacitive TFT Module/480x800 Pixels/TFT-H043A8WVIST3C30

Product parameters

Display Content - 480x800
Viewport Window Size - 4.3"
Display Size - 4.3"
Perspective - Full Perspective
Backlight brightness - 300cd/m2
Interface method - MIPI interface
Special Instructions - with CTP
Working temperature - -20~60℃
Supply Voltage - 3.3V

General Feature

Item	Standard Value	Unit
Display Size	4.3”	--
Number of Pixels	480(H)x3(RGB)*800(V)	--
Active Area	56.16(H) *93.60(V)	mm
LCM Outline Dimension	67.00(H) ×116.24(V)×3.85(D)<Include CTP>	mm
Viewing Direction	Full O'clock	-
LCM Interface	MIPI 2L	-
LCM Driver IC	ST7701S	-
Display colors	16.7M	-
LCM Driver Voltage	IOVCC=1.8V,VCI=3.3V (Type)	V
Backlight	White LED	-
Touch Panel	CTP Touch Panel	-
CTP Driver IC	GT911	-
CTP Driver Voltage	2.8-3.3V	V
CTP I/O Digital Voltage	1.8V	V
Operation Temperature	-20~60	℃
Storage Temperature	-30~80	℃

Pin Description

Pin NO.	Symbol	Description
1	NC	No Connect
2	LED_K	LED Cathode
3	NC	No Connect
4	LED_A	LED Anode
5	NC	No Connect
6	VCI	Analog Power
7	IOVCC	Power Supply for I/O System
8	TE/NC	No Connect
9	RESX	TFT Reset Pin
10	GND	Ground
11	D1P	MIPI DSI positive differential data
12	D1N	MIPI DSI negative differential data
13	GND	Ground
14	DCKP	MIPI DSI positive differential clock
15	DCKN	MIPI DSI negative differential clock
16	GND	Ground
17	D0P	MIPI DSI positive differential data
18	D0N	MIPI DSI negative differential data
19	GND	Ground
20	GND	Ground
21	NC	No Connect
22	NC	No Connect
23	GND	Ground
24	NC	No Connect
25	CTP_VDD	CTP Power supply
26	CTP_SCL	CTP I2C clock signal
27	CTP_SDA	CTP I2C data signal
28	CTP_INT	CTP Interrupt signal
29	CTP_RES	CTP System reset
30	GND	Ground
