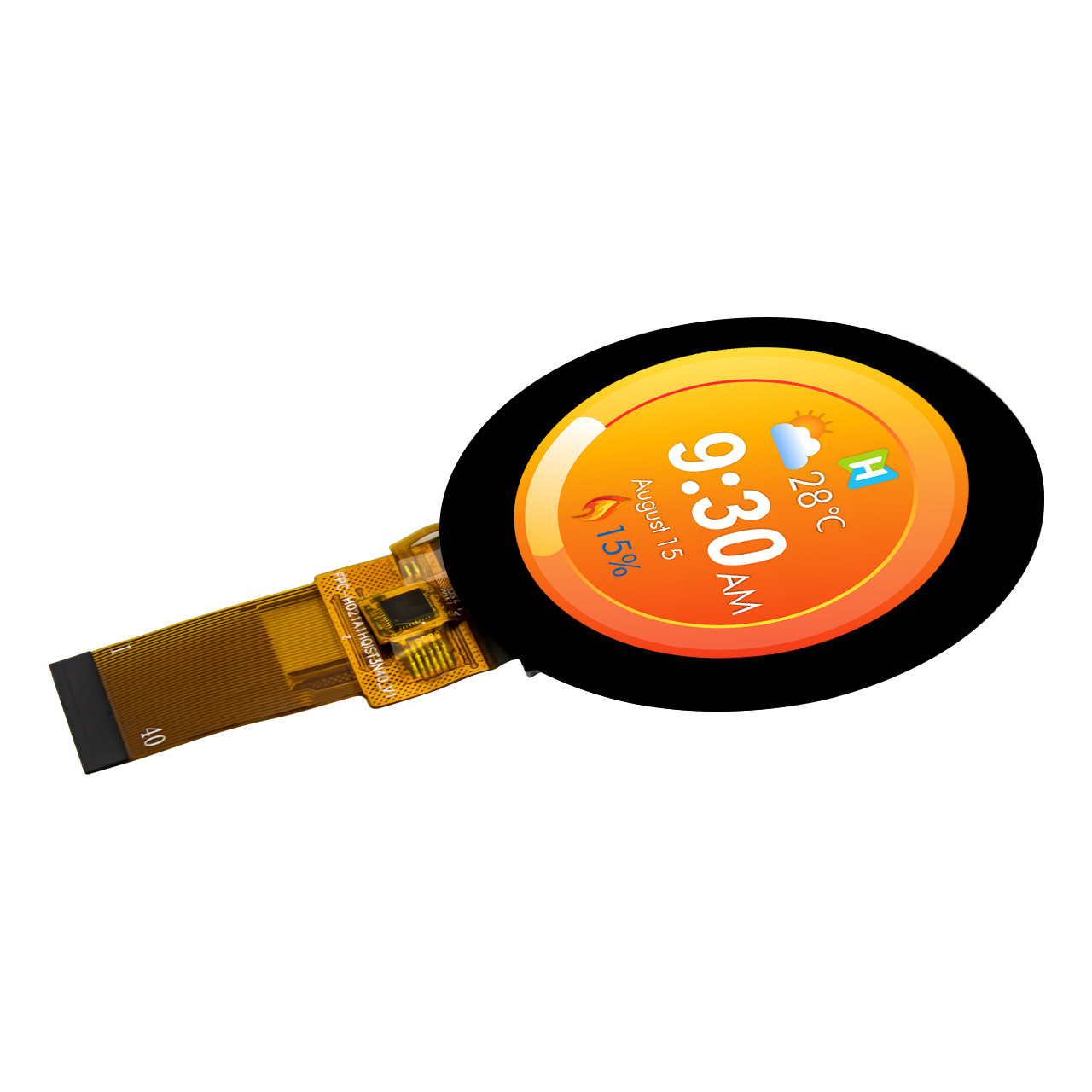

2.1inch TFT LCD display IPS round 480x480 capacitive touch screen ST7701S

Name: 21inch TFT LCD display IPS round 480x480 capacitive touch screen ST7701S
Brand: HOTHMI
Price: 1 USD

Buy cheap 2.1inch TFT LCD display IPS round 480x480 capacitive touch screen ST7701S product

Brand Name : HOTHMI

Model Number : TFT-H021A1HQIST5N40

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : Circular TFT

Dimensions (mm) : 71.26x71.26

Effective Size (mm) : 53.28x53.28

Product Application : Smart Home

Perspective : Full Perspective

Display Content : 480x480

Display Size : 2.1"

Contact Now

2.1 inch Sunlight Readable LCD TFT Display/480x480 Pixels/TFT-H021A1HQIST5N40

Product parameters

Viewport Window Size - 2.1"
Backlight type or brightness - 550cd/m2
Connection method PIN number - FPC-40PIN
Interface - RGB
Special instructions - support 16/18 bit RGB, optional CTP
Working temperature - (-20~70℃)
Supply Voltage - 3.3v
Driver chip model - ST7701S

General Feature:

Item	Standard Value	Unit
Display Size	2.1”	--
Number of Pixels	480(H)x3(RGB)x480(V)	--
Active Area	53.28(H)x53.28(V)	mm
LCM Outline Dimension	5618(H)x59.71(V)x2.26(D)	mm
Viewing Direction	Full O'clock	-
LCM Interface	RGB+SPI 3L	-
LCM Driver IC	ST7701S	-
Display colors	16.7M	-
LCM Driver Voltage	IOVCC=1.8V,VCI=3.3V (Typ)	V
Backlight	White LED	-
Touch Panel	Whitout Touch Panel	-
CTP Driver IC	- - -	-
CTP Driver Voltage	3.3	V
CTP I/O Digital Voltage	3.3	V
TFT Operation Temperature	-20~70	℃
TFT Storage Temperature	-30~80	℃

Product Description The TFT-H021A1HQIST5N40 is a 2.1-inch full-color TFT LCD module with a resolution of 480x480 pixels and a 1:1 aspect ratio. The TFT module adopts ST7701S driver IC and supports RGB/SPI interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), a typical contrast ratio of 800:1, and a module brightness of up to 550 nits (typical). The working temperature range of the module is -20℃~+70℃, and the storage temperature range is -30℃~+80℃.

2.1inch TFT LCD display IPS round 480x480 capacitive touch screen ST7701S

TFT-H021A1HQIST5N40.pdf
